Basic Information

Rated temperature: 105℃
Rated voltage: 450/750V
According to: GB/T 5023
Conductors shall be single or twisted 0.75-185mm2 Tin plated or bare copper wire
Insulation is made of 105℃ polyvinyl chloride insulation material
Environmental requirements: Compliant with RoHS standards
The product is widely used in situations where flexibility is required for fixed wiring

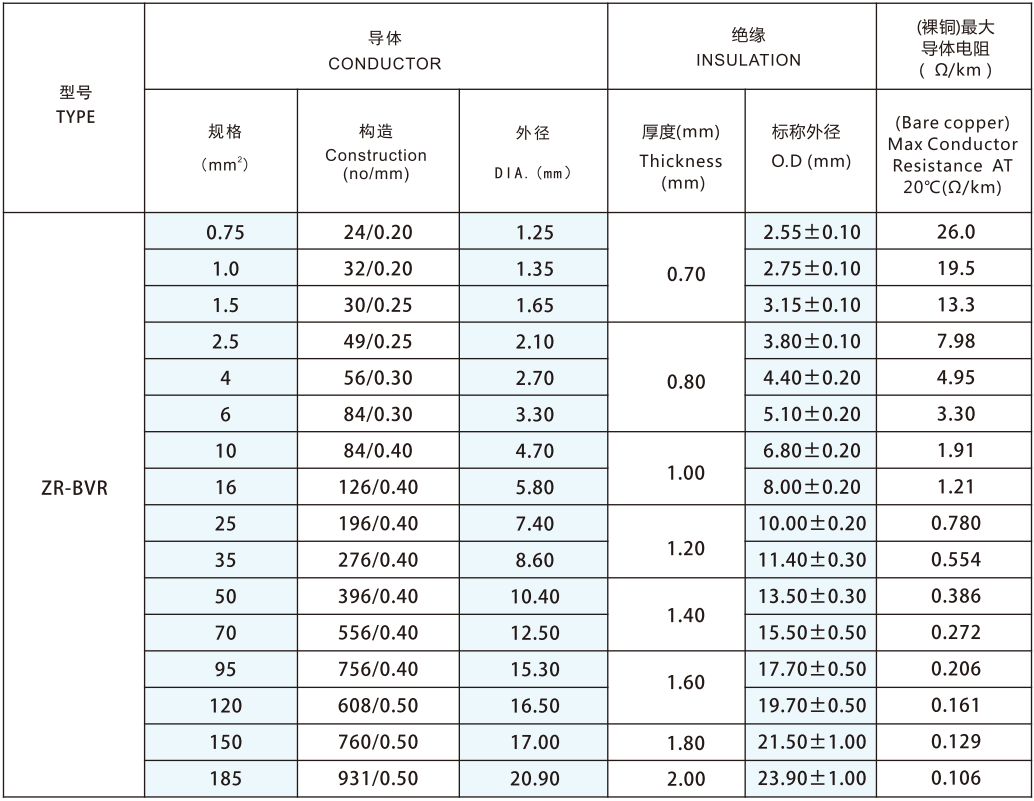

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
