Basic Information

Rated temperature: 105℃
Rated voltage: 300V
According to: UL758, UL1581, CSA C22.2
Solid or Stranded. tinned or bare copper conductor 30-16AWG
XLPVC insulation
Environmental requirements: Compliant with RoHS standards
Ground strap lead wire for the internal wiring of electronic equipment

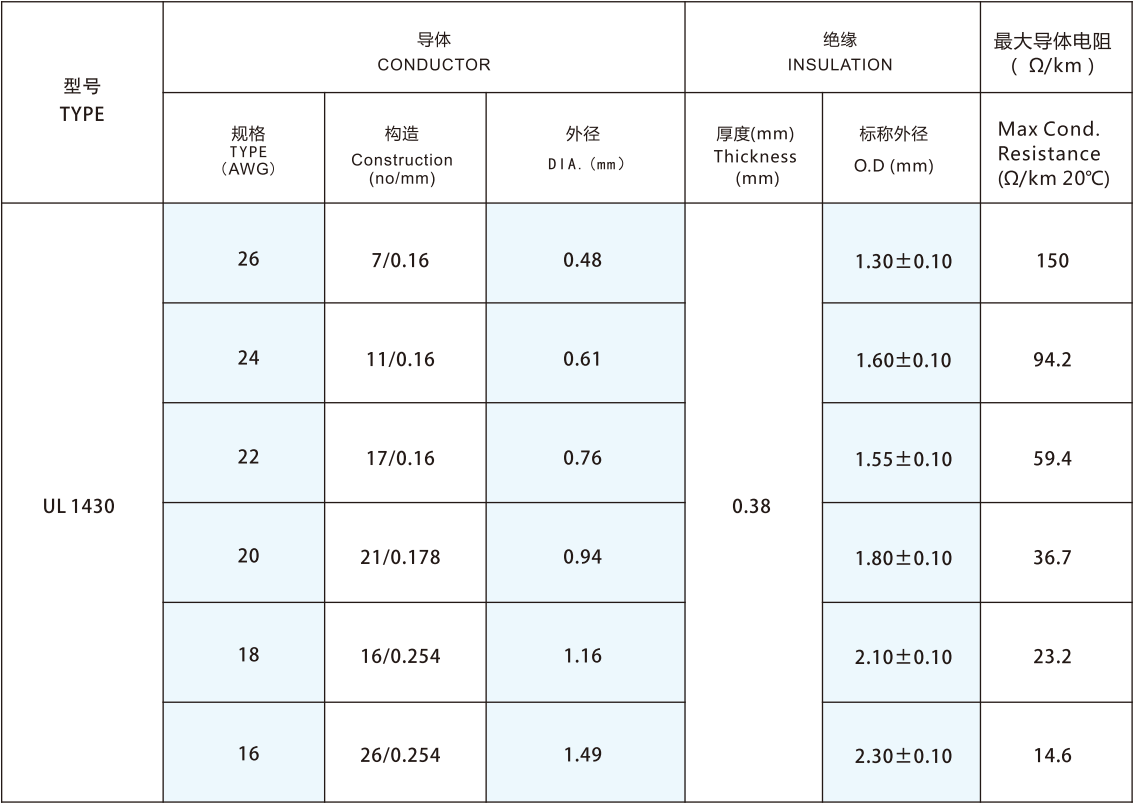

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
