Basic Information

Rated temperature: 105℃
Rated voltage: 1000V
According to: UL758, UL1581

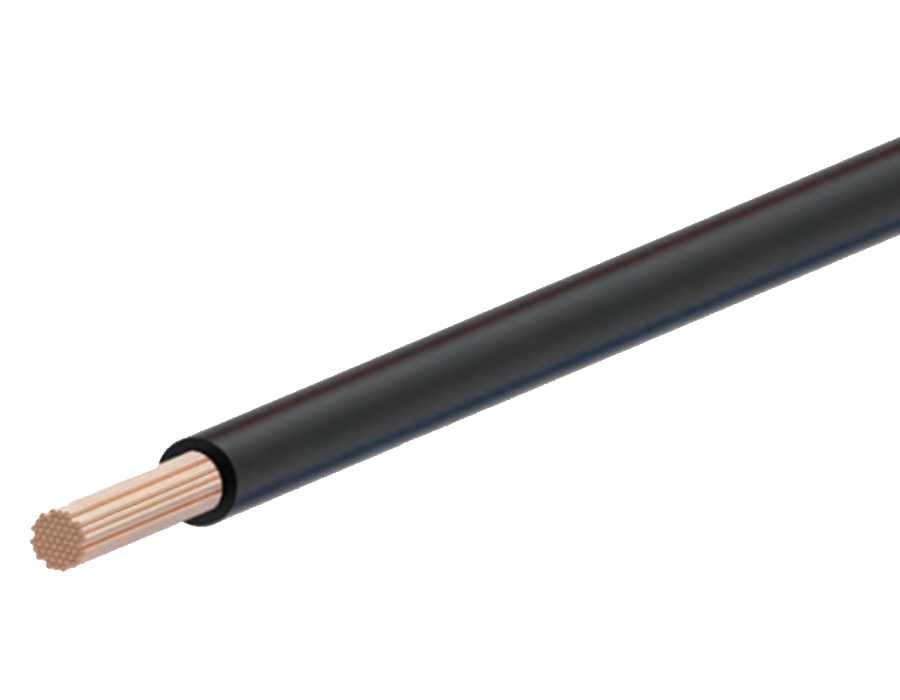

The conductor is made of single or twisted 30-4/0AWG tinned or bare copper wire, and the insulation is made of polyvinyl chloride material
Environmental requirements: Compliant with RoHS standards
The product is widely used for internal connection wires in general electronic and electrical equipment

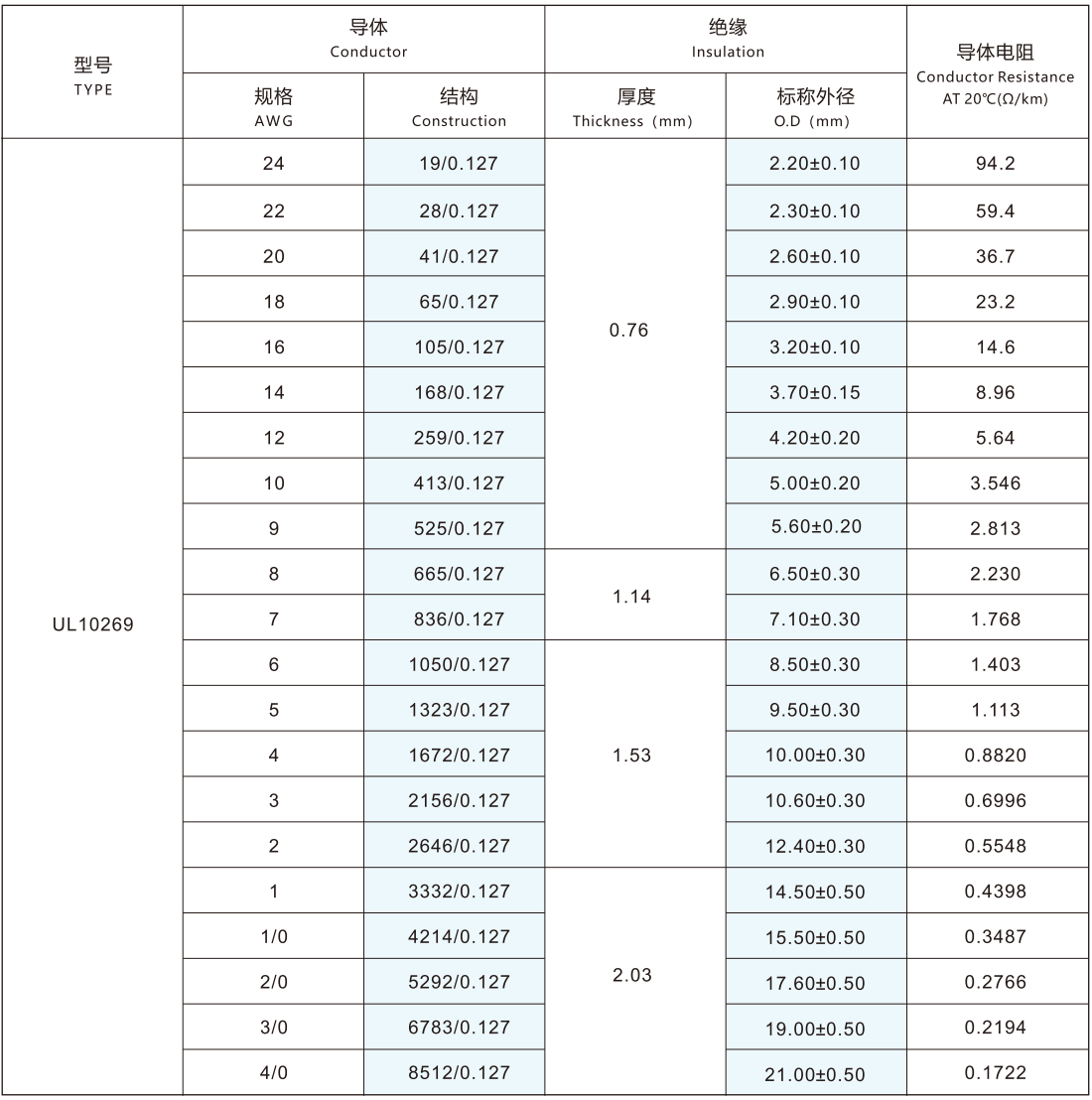

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
