Basic Information

Rated temperature: -40~125℃
Rated voltage: 2000V
According to: UL758, UL1581

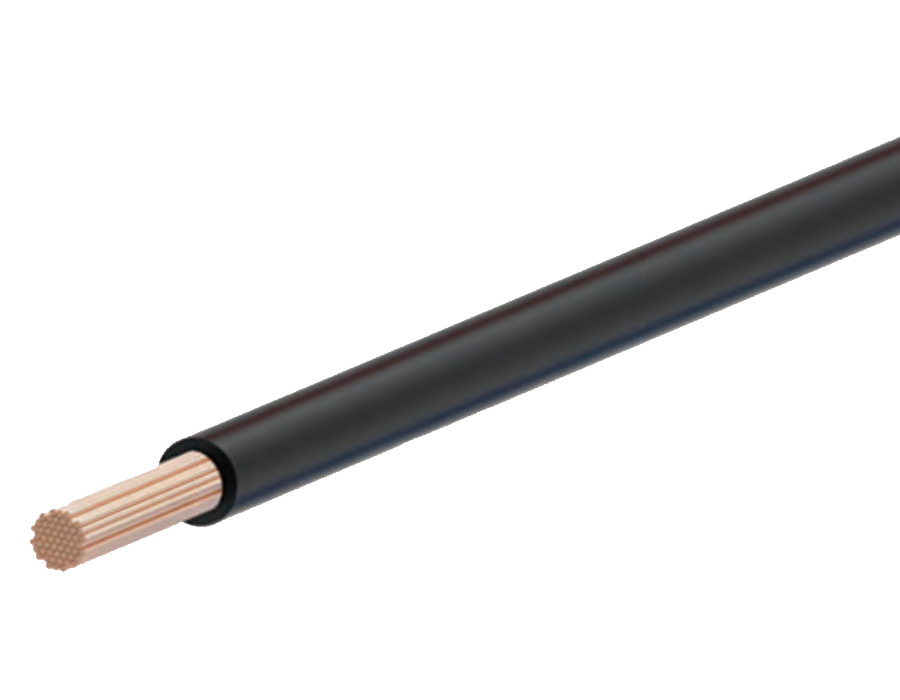

The conductor is made of single or twisted 26-4/0AWG tin plated or bare copper wire
Insulation is made of irradiated cross-linked polyolefin material
Environmental requirements: Compliant with RoHS standards
The product is widely used for internal connection wires of general electronic and electrical equipment

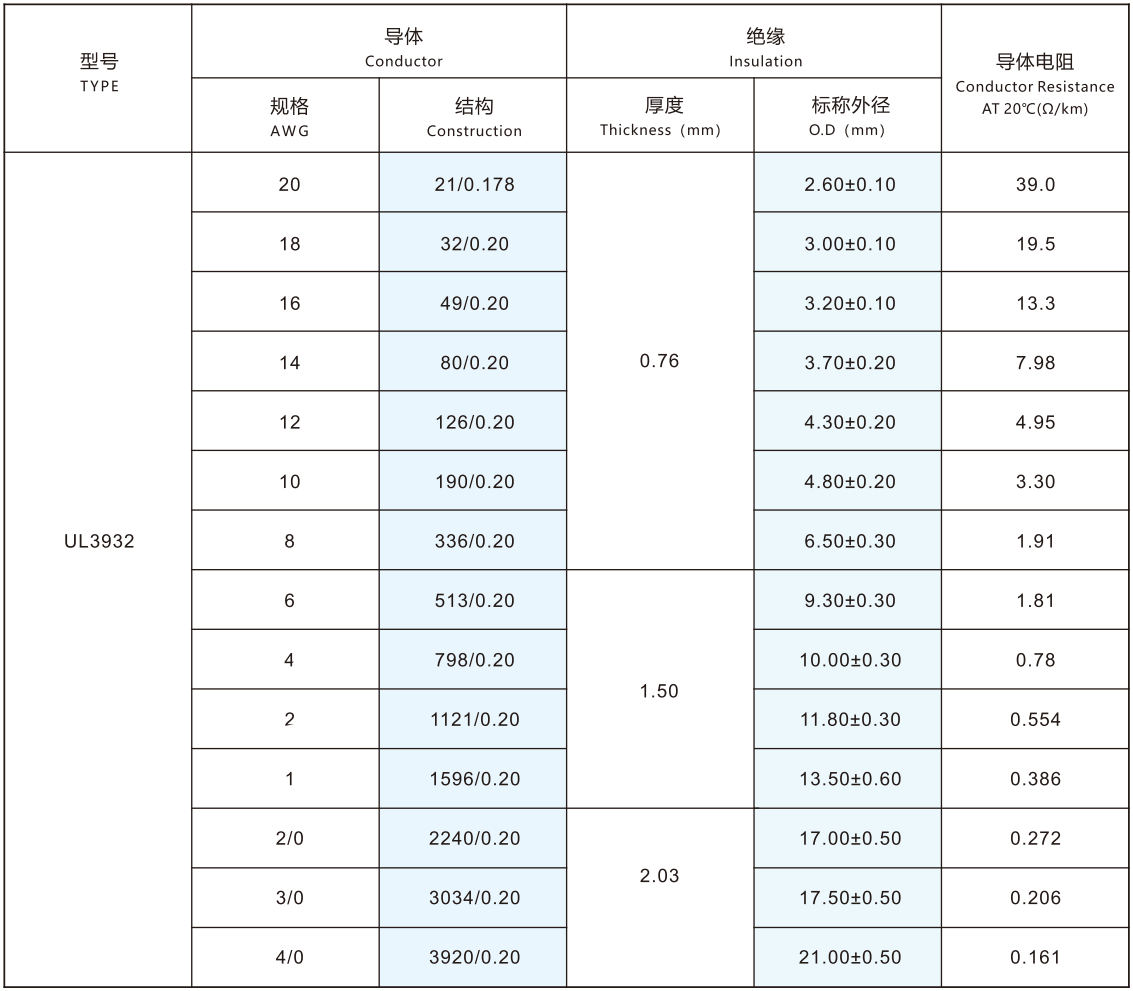

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
